Item specifics
Hign-concerned Chemical:
None
Aperture:
F1.8
Working Temperature:
-20℃-60℃
Cable Length:
6m Cable
Weight:
1.25kg
Dimensions (W x H x D):
35.5*14*8cm
Power Source:
Corded Electric
APP Compatibility:
WIFI

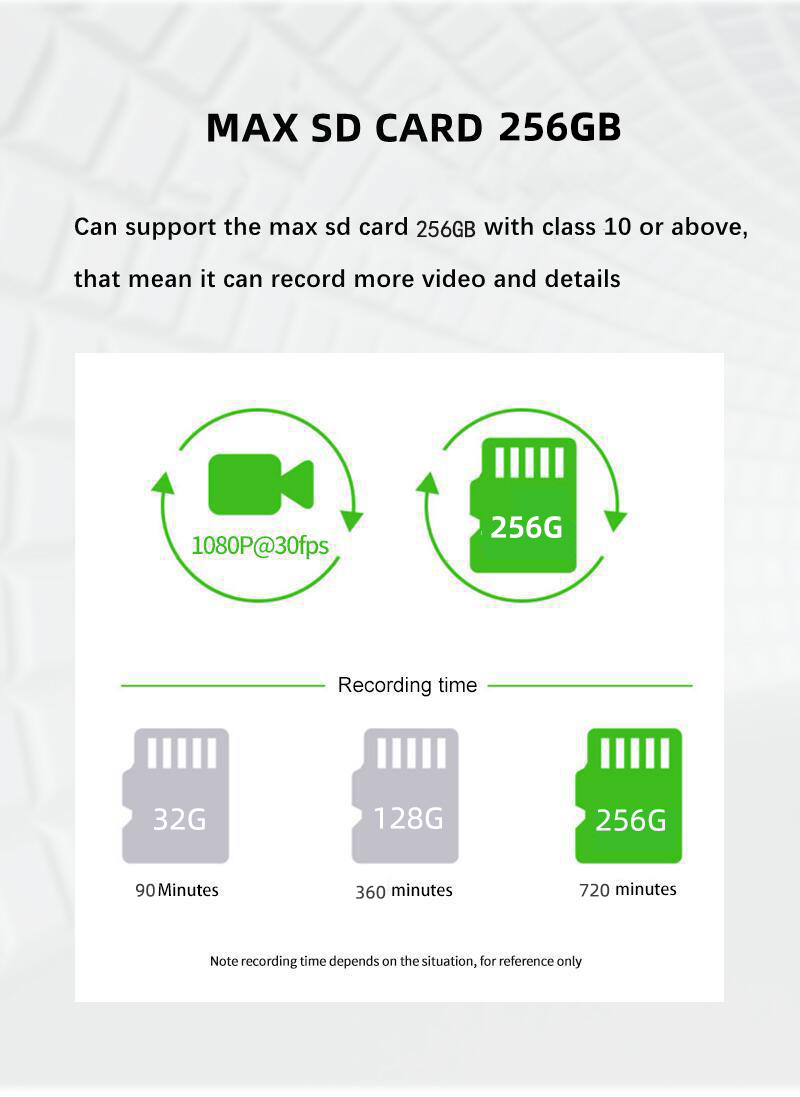

Data Storage Capacity:
Max support 256G TF Card
Built-in Screen:
YES
Loop-Cycle Recording Feature:
YES
Audio Recorded:
YES
Maximum Video Frame Rate:
30

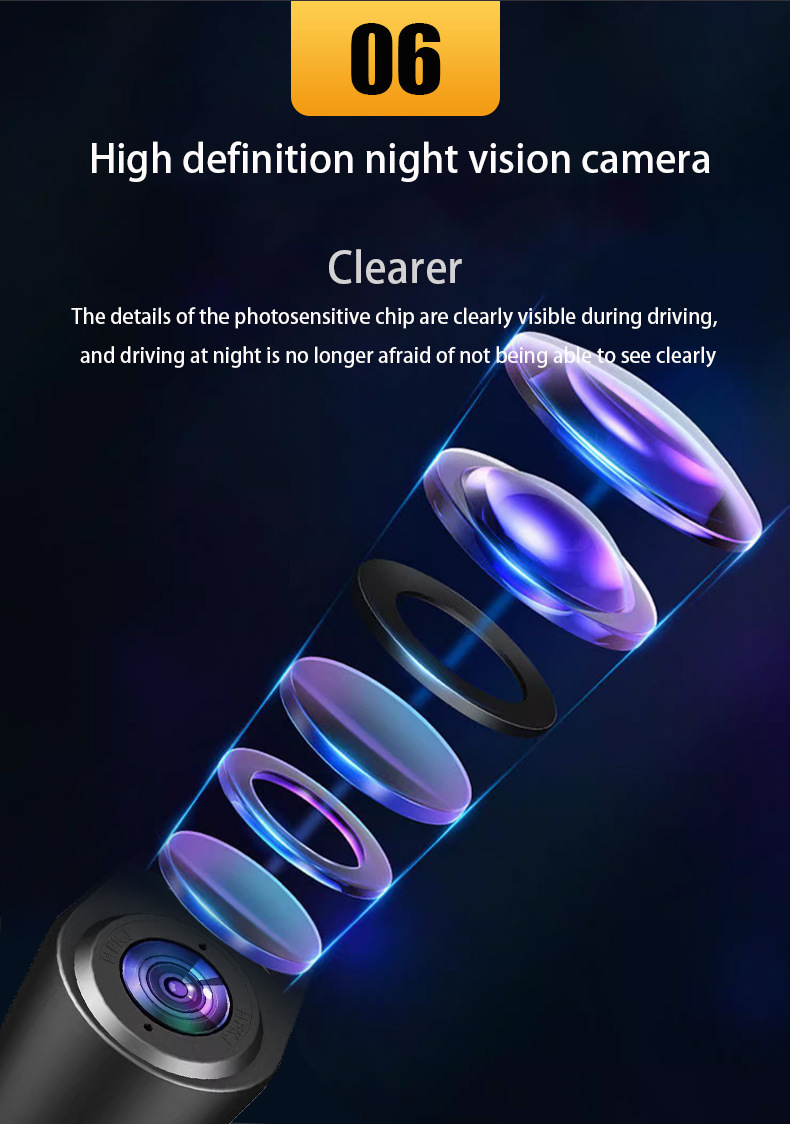

NightShot Function:
YES
Rear Camera:
YES
Original Package:
YES
Touch Screen:
YES
Screen Ratio:
16:9
Memory Card Required Reding Speed:
Class 10

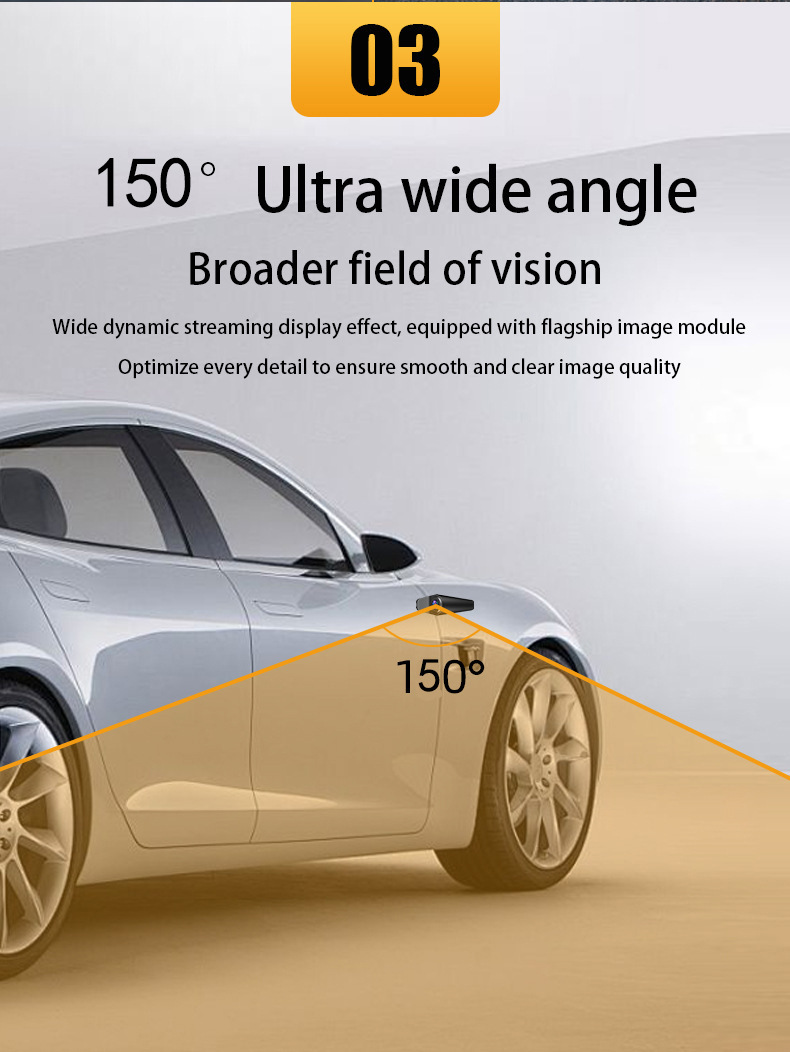

View angle:
150 Degree
Camera Resolution:
3840x2160
Video Code:
H.265
Video Format:
TS
Special Features:

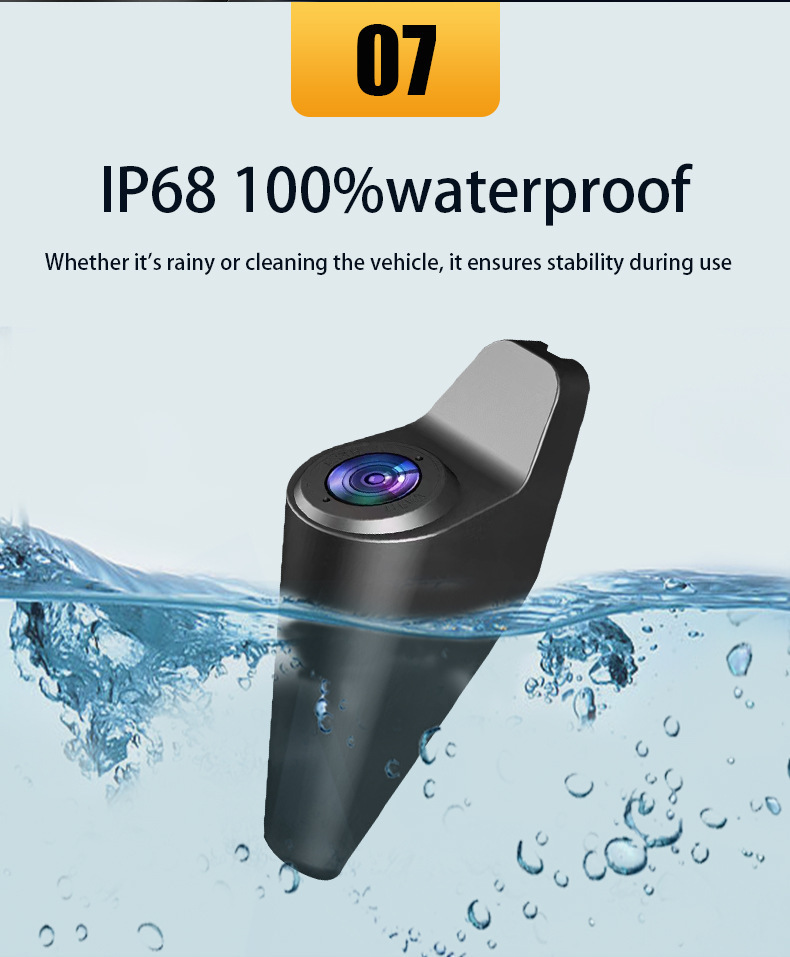

G-Sensor,sd/mmc card,With Rearview Mirror,Waterproof,Real Time Surveillance,wifi function,Parking Monitor
Max External Memory:
256G
Number Of Lenses:
4
Imaging Sensor:
1/3"Sony Ccd
Pixels:
1200Mega
Display Size:
12
OSD Language:
Chinese (Simplified),Chinese (Traditional),English,japanese,RUSSIA,Russian,THAI,VIETNAMESE
GPS logger:
None
Battery:
None
Assembly Mode:
rearview mirror
Chipset Manufacturer:
SA226
Frames Per Second:
30
Brand Name:
KUNFINE
Origin:
Mainland China
Display:
IPS
Accessory Type:
Car DVR
Item Type:
Car DVR
Battery Life:
No battery
Battery Type:
No battery
Certification:
CE
Battery Capacity(mAh):
1000mA
Interface:
USB2.0,Micro SD/TF
KUNFINE AUTO PARTS

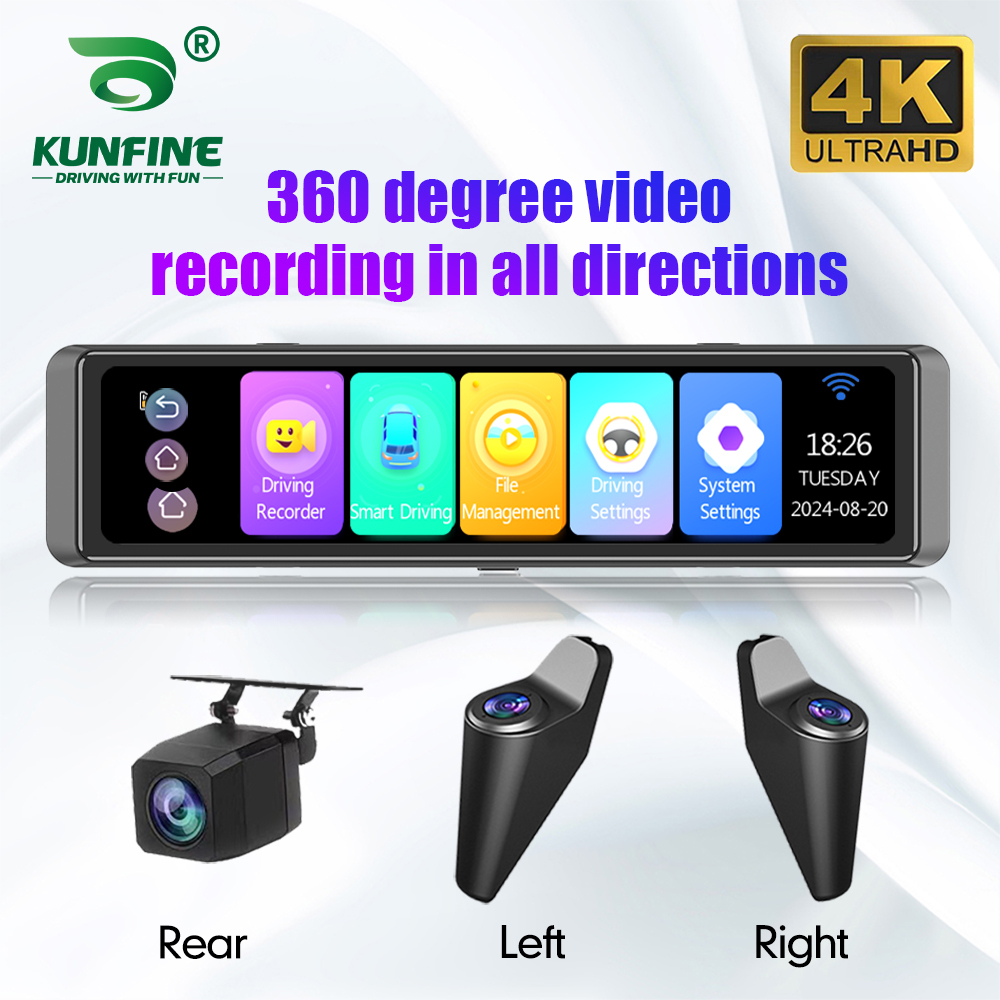

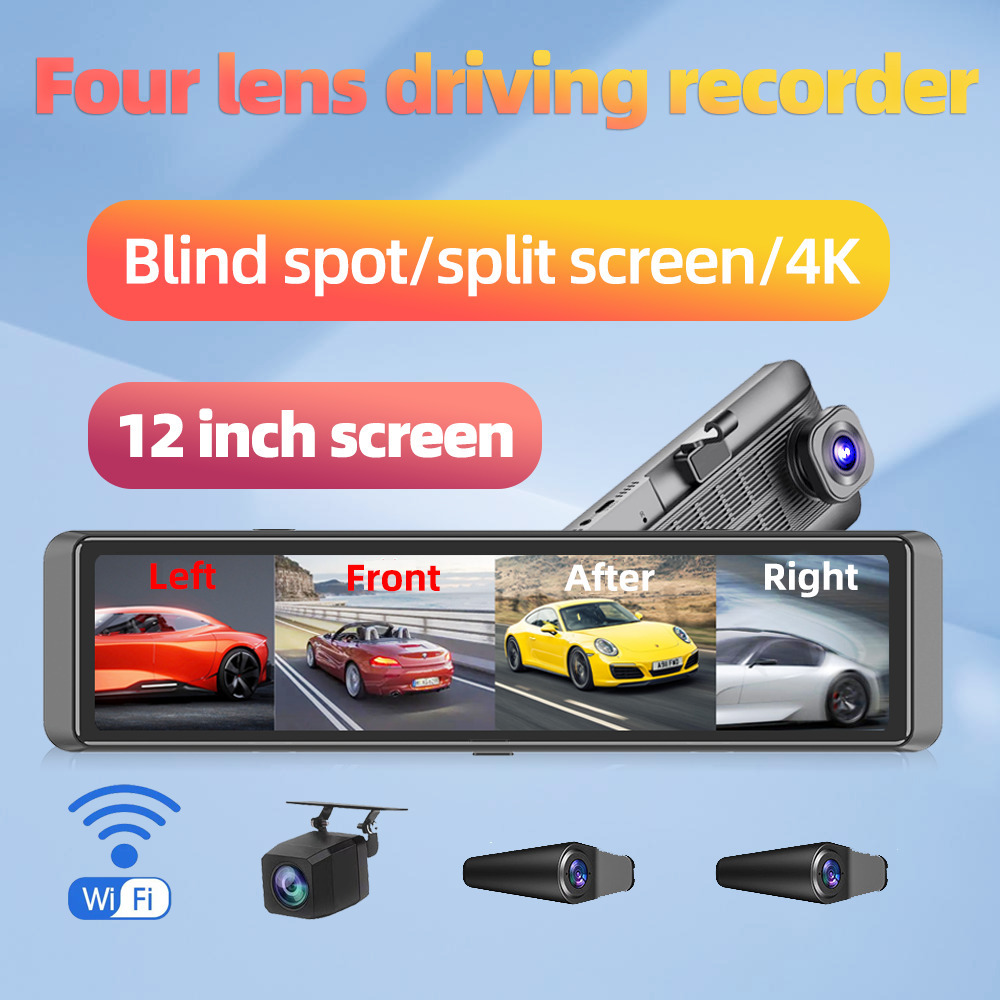

12 Inch Dash Cam 4-Channel Record 1080P 4K ADAS BSD Car DVR WIFI Rear View Mirror Auto Video Recorder Camera Ultra HD 24H Parking
Configuration parameters：
●CPU: Yizhi SA226 (Dual-core CPU 1.5 GHz)
●Video codec performance: H.265/TS stream
●Memory specifications: Dual DDR

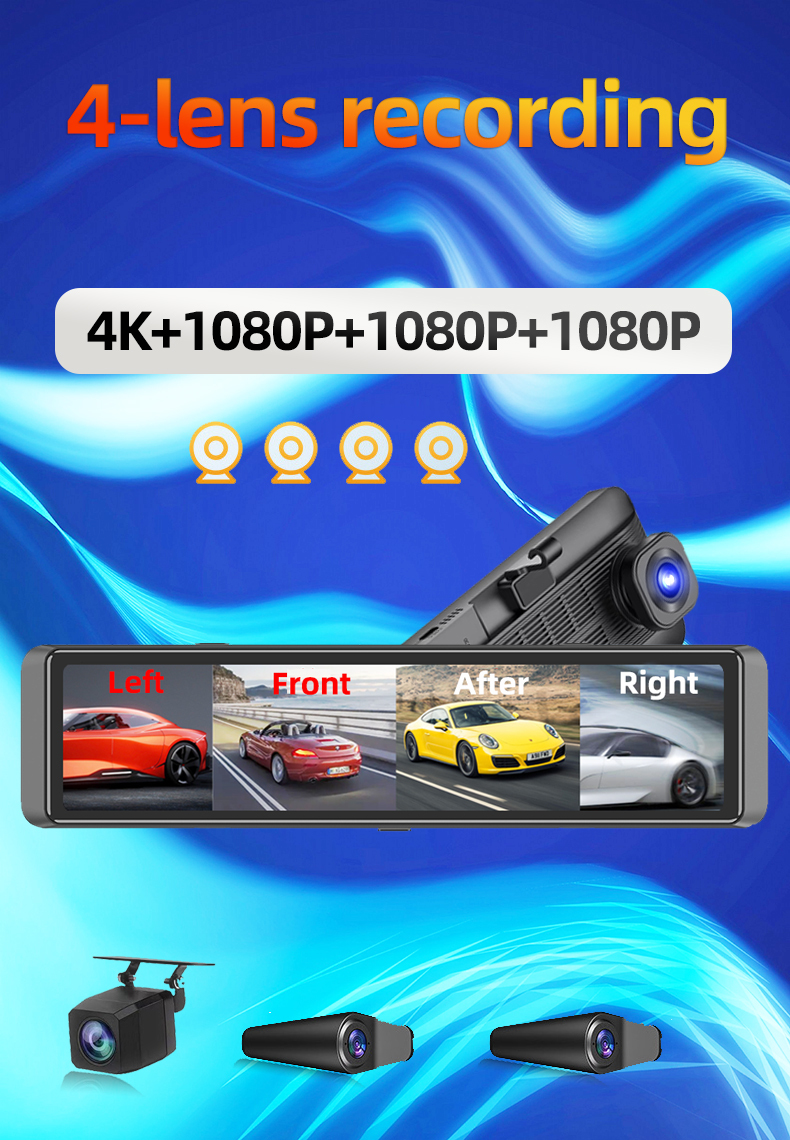

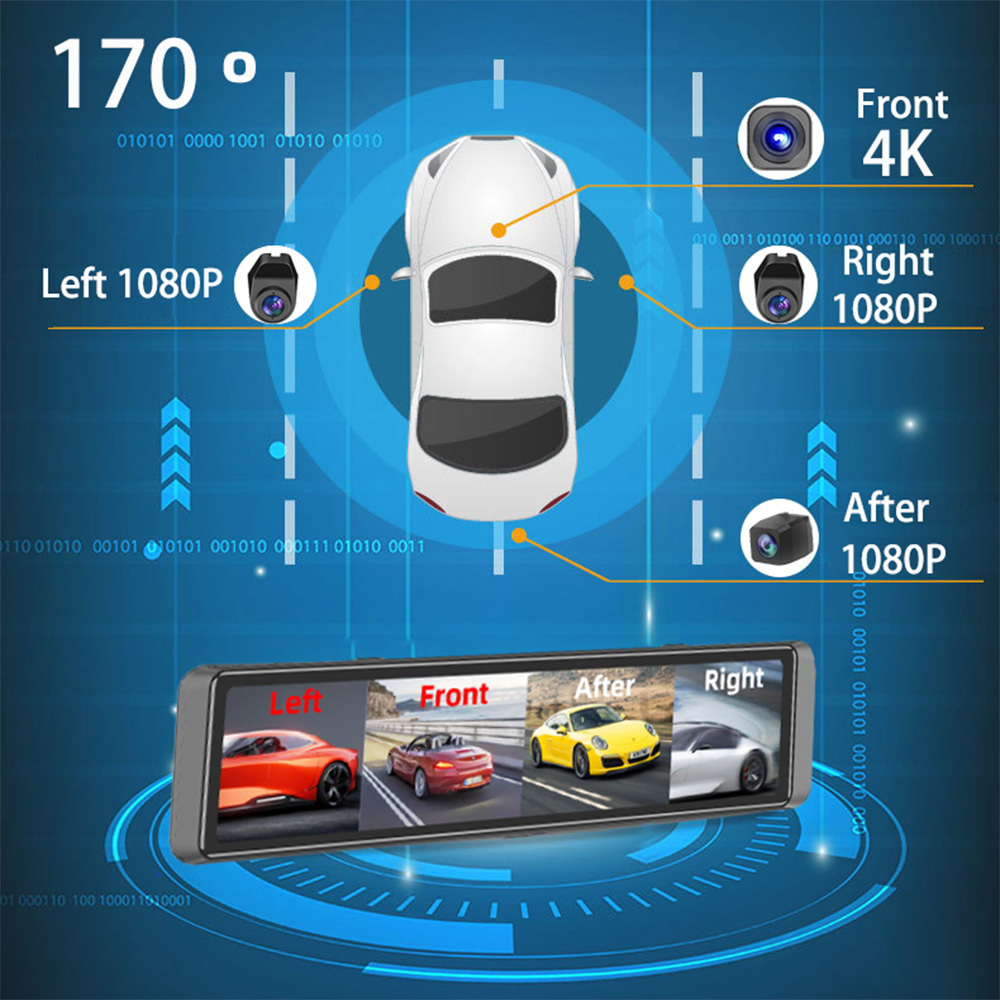

●Functional specifications:
Front: 4K/25fps
Left + right + rear: 1080P/25fps
Display 1920x480 (LED)
●SPI NOR Flash: 16M Bytes
●Running memory RAM: 256MB*32 DDR3L
●Sensor: 323PJ_MIPI/2MP CMOS Sensor

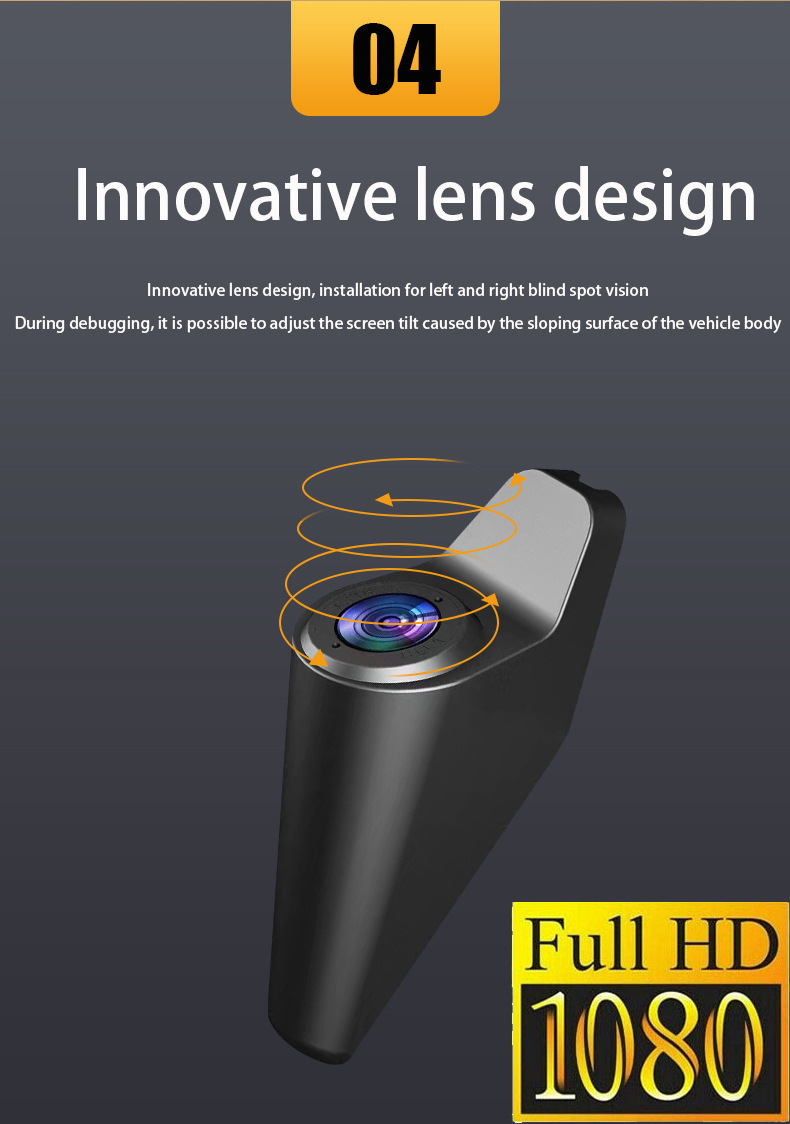

Lens: 2G2P; Aperture F/NO: 2; Lens angle FOV: D=126°H=101°V=60°

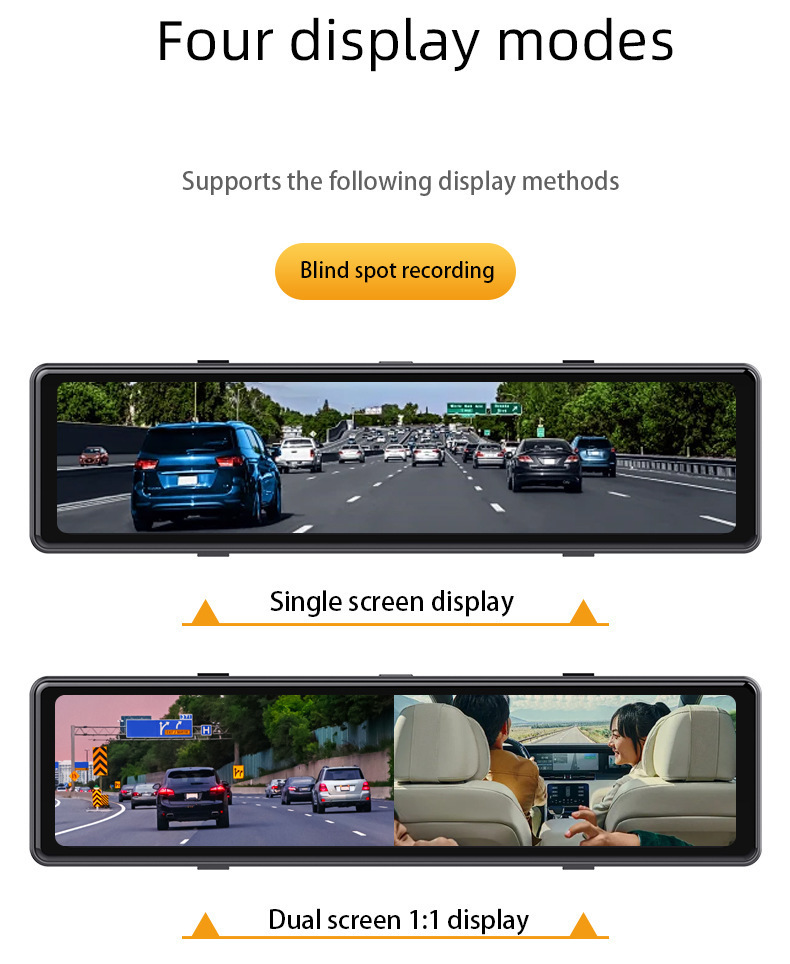

●Display: 11.26 inches/1920*440 MIPI interface IPS screen

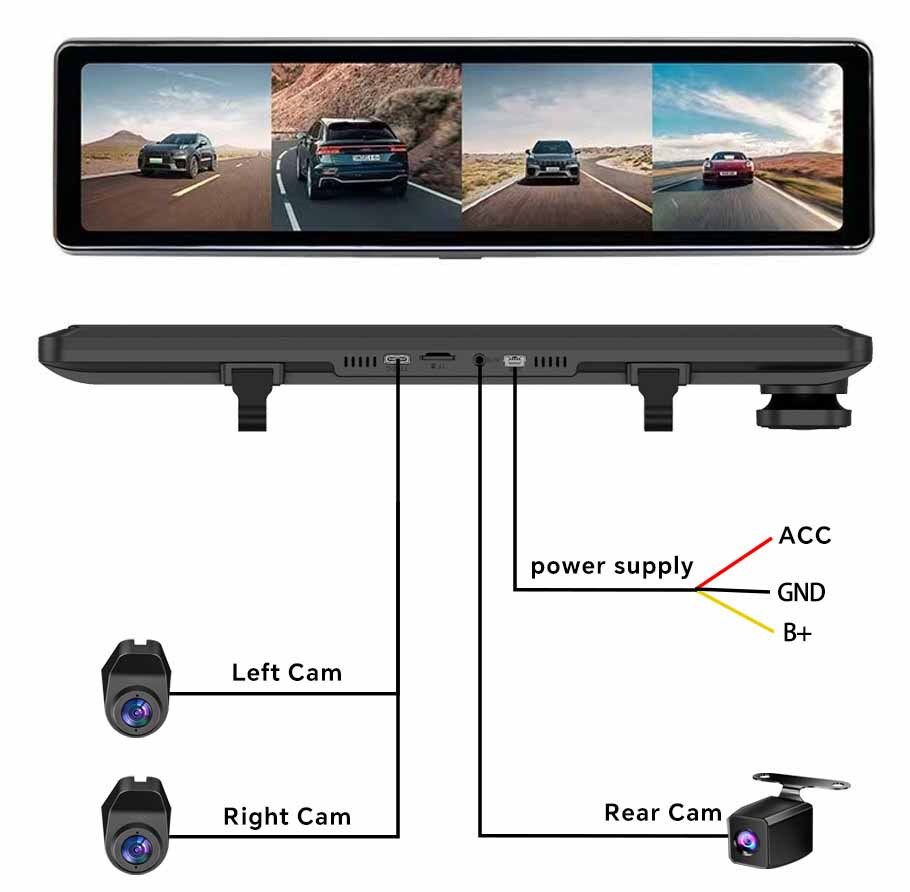

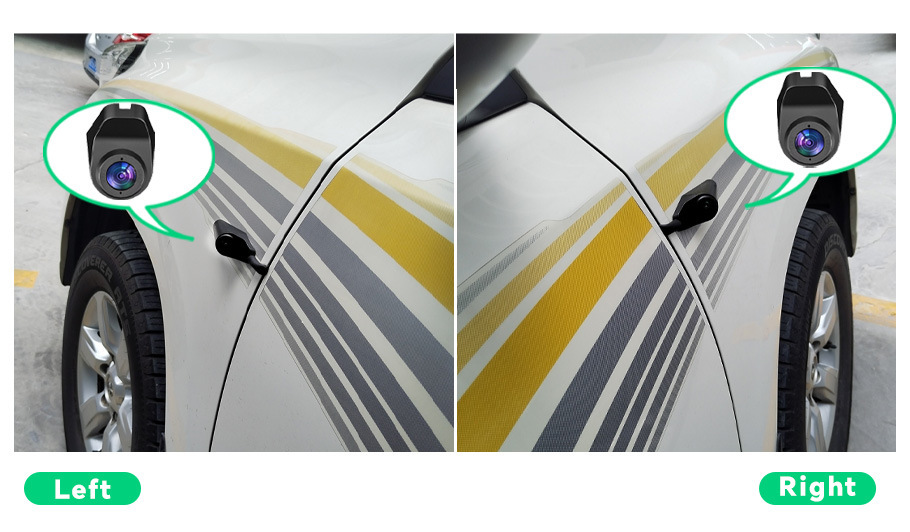

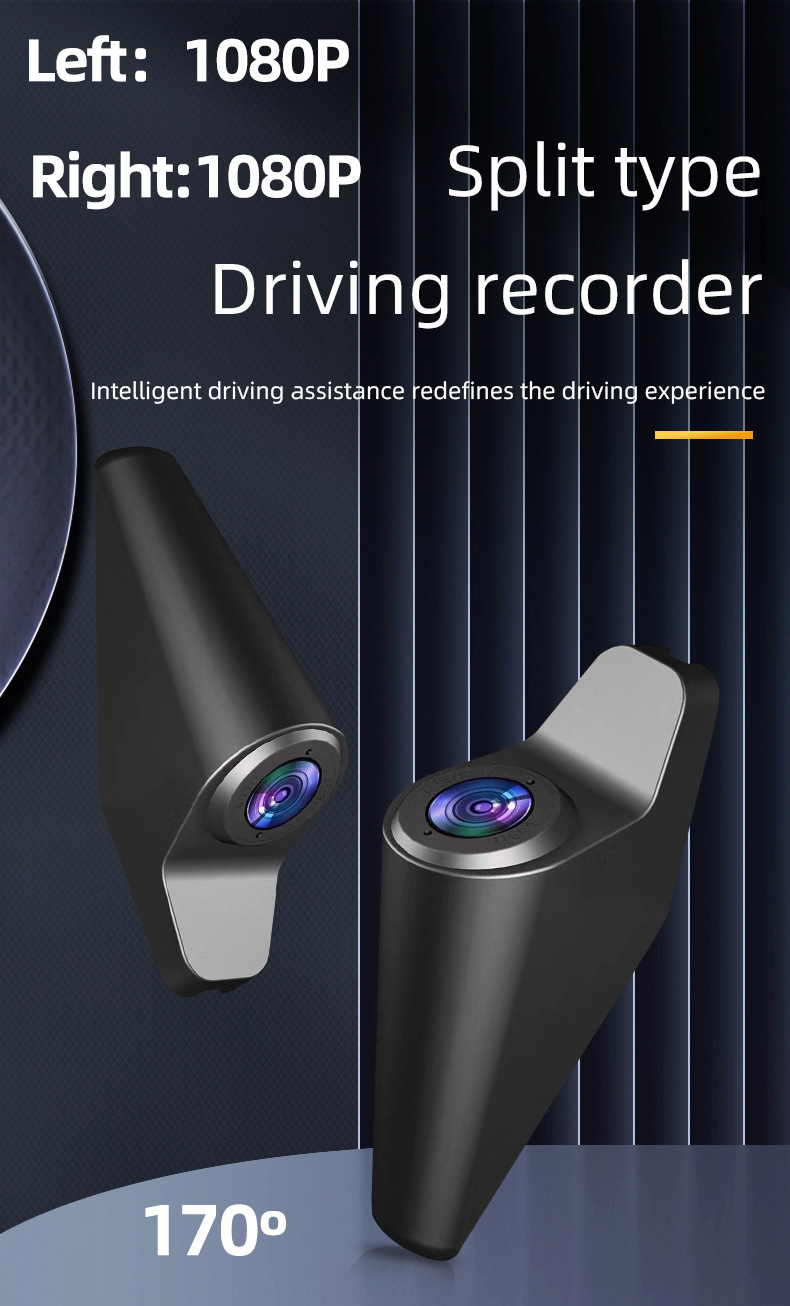

●Left and right recording: 1080P AHD rear pull camera/Type-C interface one-to-two
●Rear recording: 1080P AHD rear camera/φ2.5 plug
●Power supply:

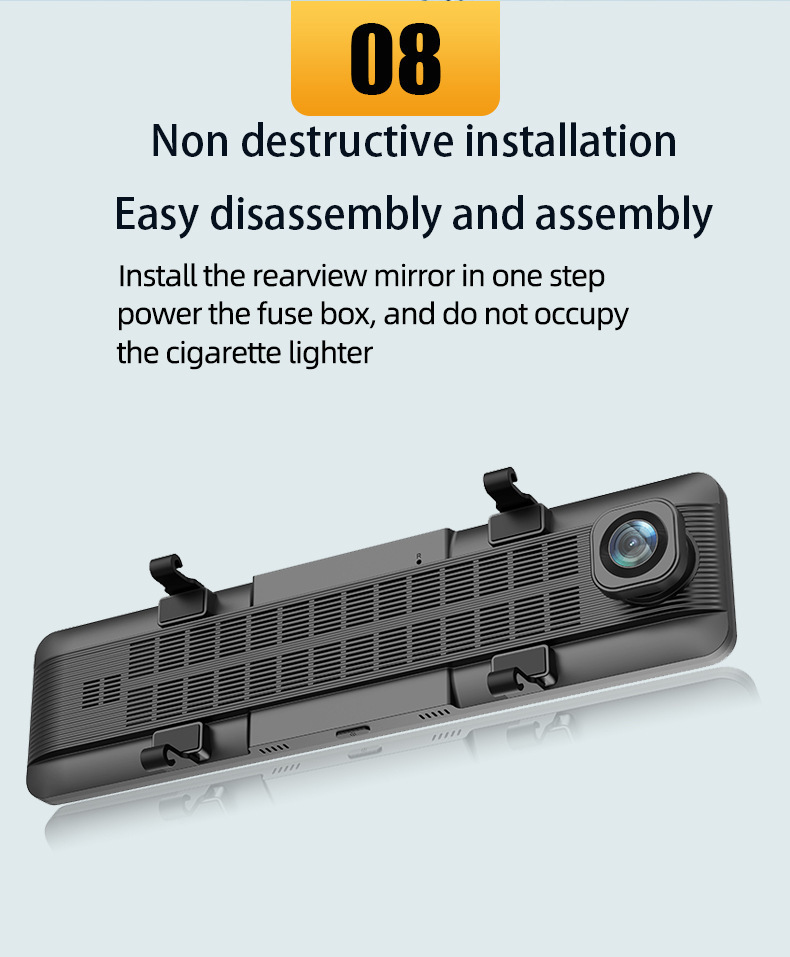

Step-down line (power from fuse box), mini USB plug 12V/1A;
Working current of the whole machine: 1A, time-lapse video current: 300mA
Standby current: 25μA at battery end, 4mA at DC5V end
●Working temperature: -20~70°C
Storage temperature: -30~80°C
Function:

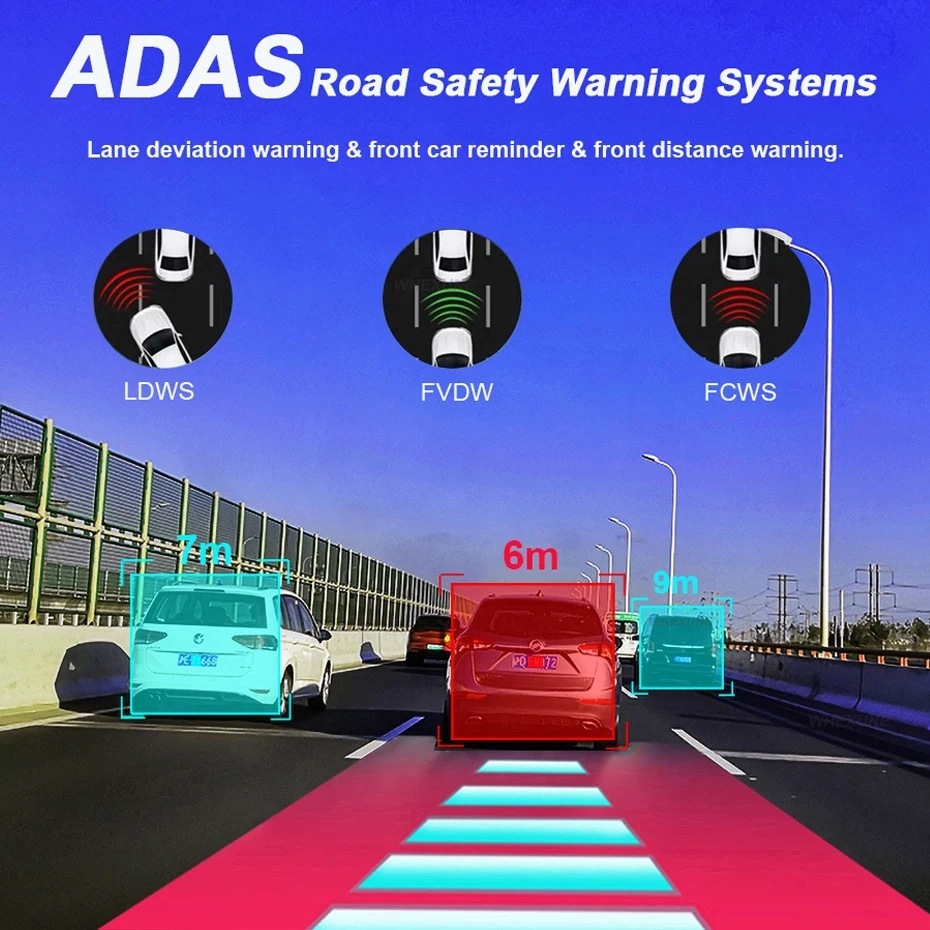

●ADAS: Support
●Reversing image: Support
●ASR voice recognition: Support (Mandarin)
●WIFI: Support
●Time-lapse video: Support
●GPS (electronic dog): No
●DMS fatigue driving monitoring: No

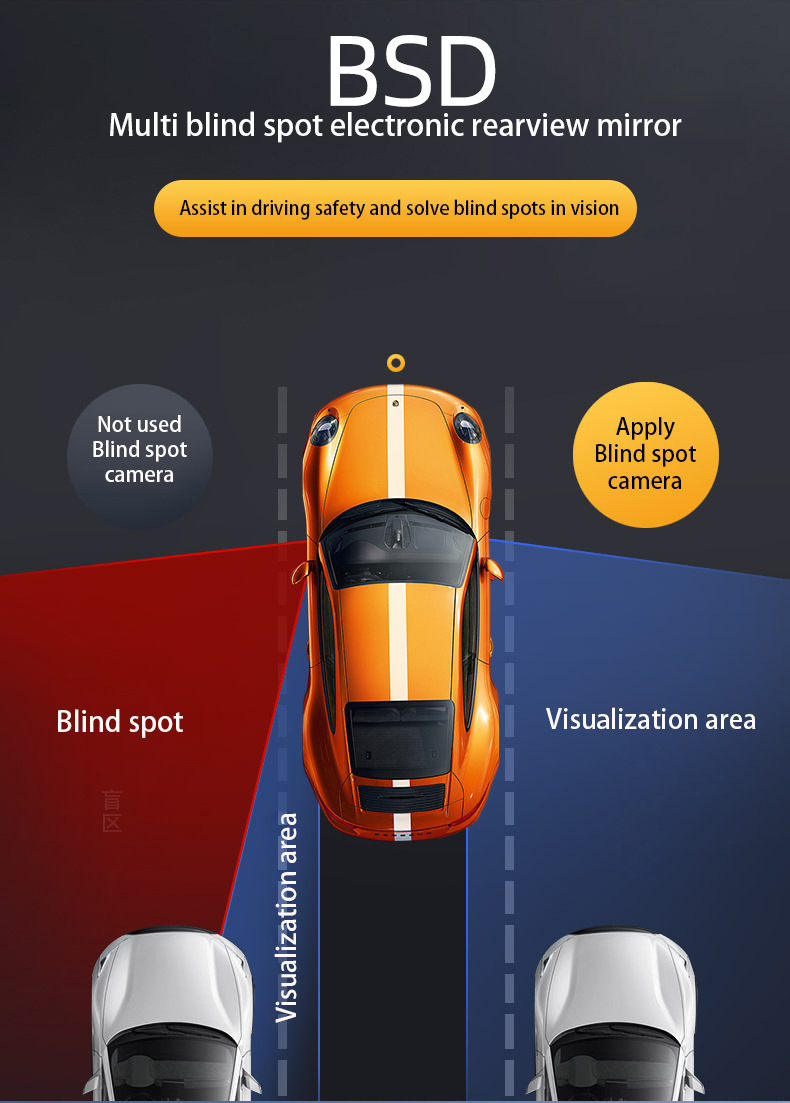

●BSD blind spot monitoring warning: Support left + right + rear (3 channels)
●Touch: Support
●Audio: Support recording and playback
●G Sensor: Optional parking monitoring (three-axis sensor)
●Memory Card Micro SDHC Class10 (maximum support 128GB)
●File format: video file format TS; photo format JPG
●Operating system: RT-Thread

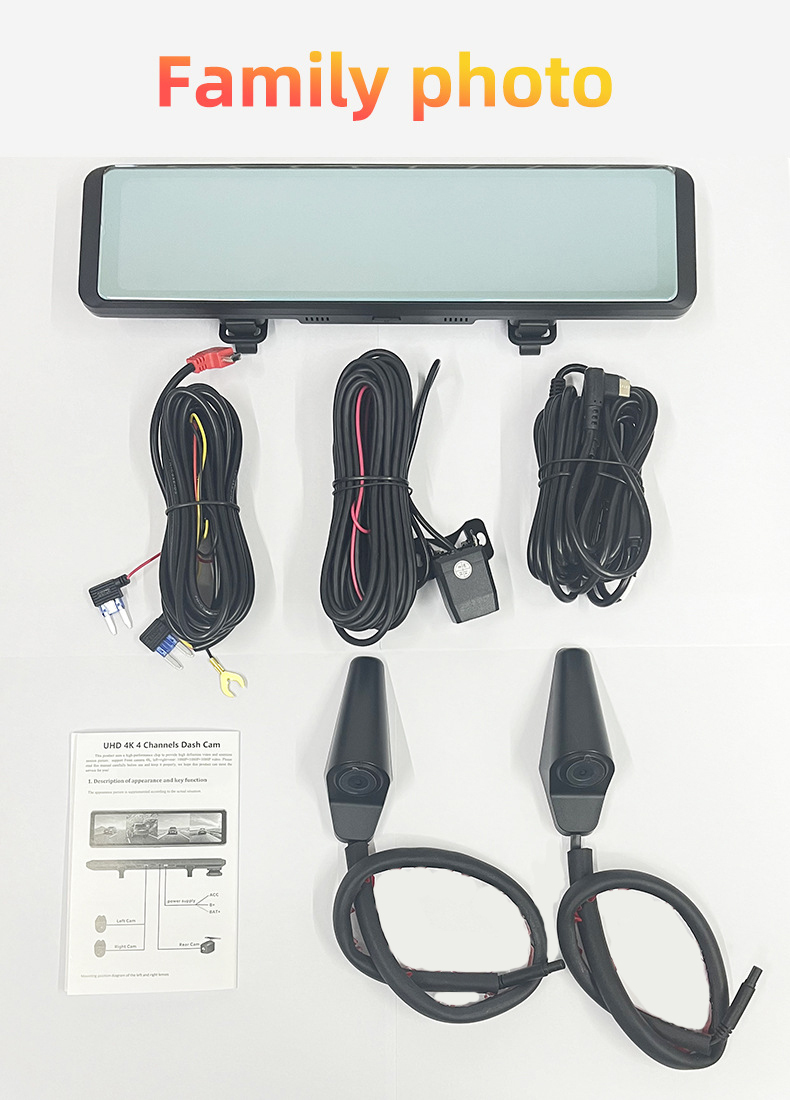

Accessories
