• Universal Car Rear View Backup Camera Kit Wifi Reverse Parking Camera

Universal Car Rear View Backup Camera Kit Wifi Reverse Parking Camera

0 stars, based on 0reviews
Price:
$8.67 / piece
Variety
  • Wireless
  • Wire
  • Wire AHD 720P with track
  • Wireless AHD 720P with track
  • Wire AHD 1080P
  • Wireless AHD 1080P
Quantity: - + 7items available
Contact Us

KUNFINE Universal IP67 Waterproof Rear View Camera with 4 LED Car Back Reverse Camera RCA Night Vision Parking Assistance Cameras




Suitable For Car:

Universal rear view camera



Advantages：

1.Easy Install Car View Camera:No Need to drill hole, instead of car license plate Number light cover, Play and plug as a car license plate frame camera

2.High definition with AV plug:Universal AV Plug connect car monitor Display Screen or car DVD GPS player directly , also could match wireless Video Transmitter Receiver to be a Wireless Car Rear View Camera

3.Night vision and Wide Angle Reverse parking Camera：With Compensating Light Vehicle Camera ,include Super white LED lights and distance line ,help you see more clearly at night

4.Shock-proof and Waterproof Back Up Parking Camera :Driver See clearly when Driving or bad weather

5.Universal car rear view camera with 1 year warranty to every customer.



Specification:

Model: Wire / Wireless

TV system: NTSC/PAL

Effective pixels: 658 x 462 Pixels/628 x 586 Pixels

Sensing area: 5.961 x 4.276mm

Horizontal resolution:420TVL

Shutter speed :1/60-20us

Minimum illumination: 0.1Lux/ F1.8=1.2 (0 Lux with Led)

Lens Angle: 170°

Waterproof: IP67-IP68

Video output: 1.0Vp-p, 75ohm

Current Consumption: No More 300mA

Power supply: DC 12V

Operating Temperature: -20°C~ 60°C, RH95% Max.

Storage temperature: -30°C ~ 60°C, RH95% Max.

Video cable length: 6m


Model : 5001 / 837  (ADH 720P + AHD 720P TRACKING )
Image Sensor: 1/4.2 "OV Color
Waterproof IP:  IP69
· Effective Pixels: 1288H*728V
· Horizontal Resolution: 600-800TVL
· Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)
· Night Vision: 5-10meters
· Lens: 2.8mm
· Diagonal Viewing Angle: 170 degree optional
· Synchronization: Internal synchronization
· Signal to noise ratio: >42db
· Signal System: PAL/NTSC
· Electronic Shutter: Auto
· Video Output: RCA interface, 1.0Vp-p, 75Ohm
· White Balance: Auto
· Backlight Compensation: Auto
· Power: DC 12V
· Current Consumption: Analog = 3.3V ± 0.1V /Digital = 1.5V ± 0.1V / I/O = 1.8V/3.3V ± 0.1V, Max 70mA with IR on
· Operating Temperature: -30C~ +85C, RH95% Max
· Storage Temperature: -20C ~ +60C, RH95% Max
· Video cable length: 5m

Model: 847  (AHD 1080P)
Image Sensor: 1/2.7 "OV Color
Waterproof IP69
· Effective Pixels: 1936H*1096V
· Horizontal Resolution: 600-800TVL
· Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)
· Night Vision: 5-10meters
· Lens: 2.8mm
· Diagonal Viewing Angle: 120 degree optional
· Synchronization: Internal synchronization
· Signal to noise ratio: >48db
· Signal System: PAL/NTSC
· Electronic Shutter: Auto
· Video Output: RCA interface, 1.0Vp-p, 75Ohm
· White Balance: Auto
· Backlight Compensation: Auto
· Power: DC 12V
· Current Consumption: AVDD =2.8V DVDD = 1.5V DOVDD = 1.8V, Max 130mA with IR on
· Operating Temperature: -30C~ +85C, RH95% Max
· Storage Temperature: -20C ~ +60C, RH95% Max
· Video cable length: 5m

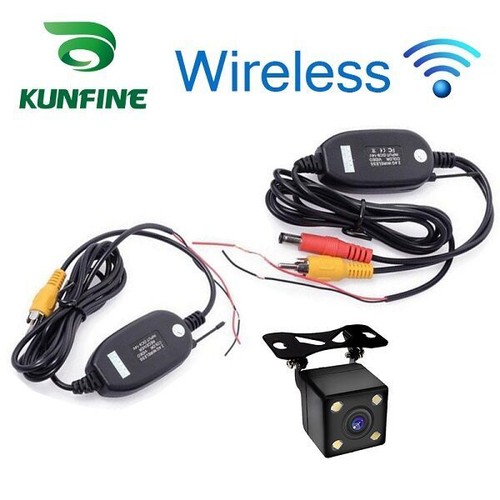

Package Content:

1x Car Rear View Camera
1 x WIFI transmitter
1 x WIFI receiver

Accessories
